01
Download Input
Create Actions, Multi Action or simply remap your Knob1 with Input:
*Use the provided cable, if you are using a different cable and Nomad doesn’t connect remember to use a data cable.
02
Using the display
To interact with the display you will need to use the Fn button (any) and turn the top dial. The Fn buttons are used in 3 kinds of interactions: widget scroll (Fn + top dial), widget overlay (hold Fn), or widget actions (Fn + top or bottom dial).
By default the 2 dials will perform user defined actions, and will only affect the display when used in conjunction with the Fn button.
03

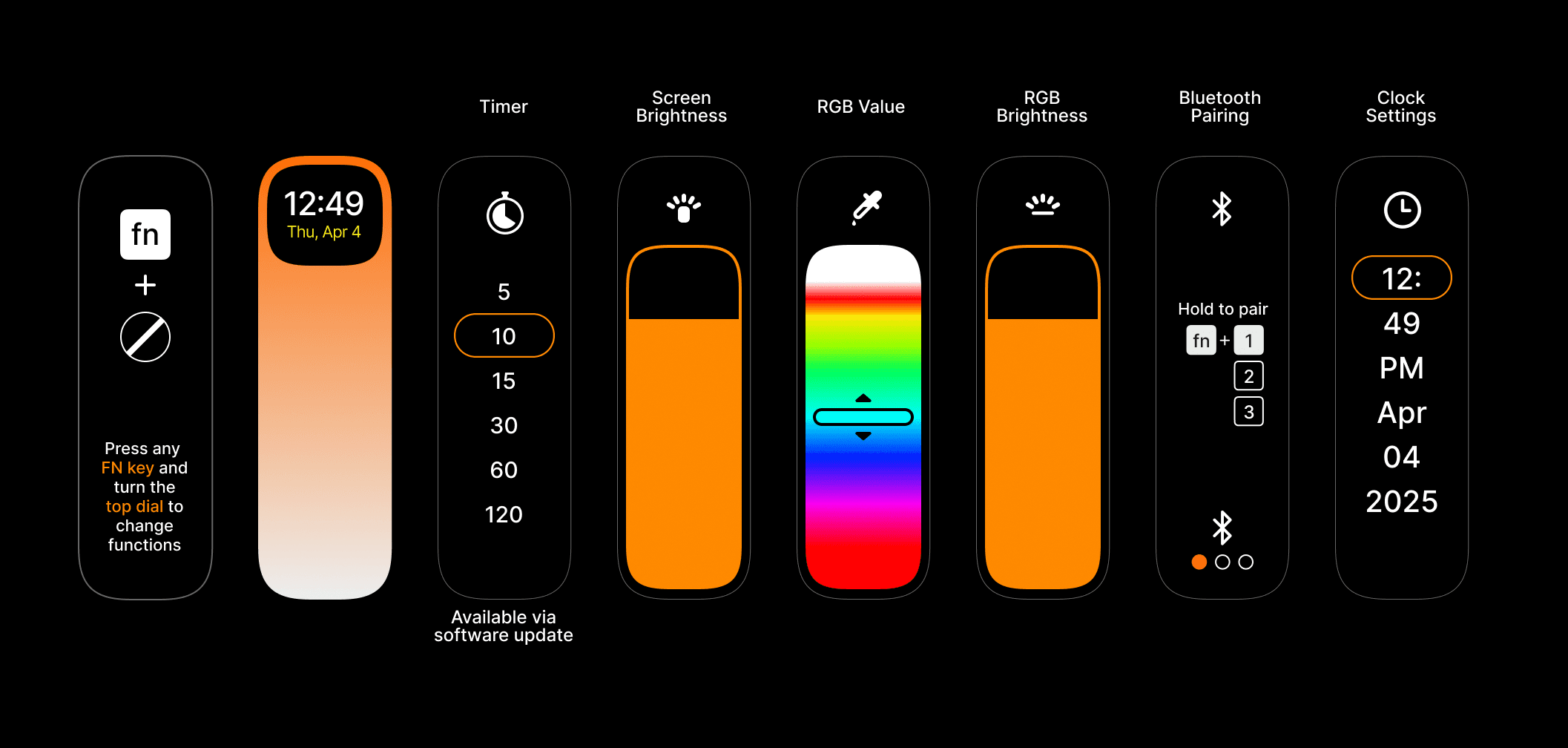

Feature overview (Fn + top dial)
04
Display indicators
05
Clock settings
To set your clock, navigate to the Clock settings. Select the value to change scrolling with the Top dial and set it with the bottom dial. No confirmation needed, just return to the home screen to get your time properly set.
06
Widget
Timer widget
This is your timer, set your timer period turning the top dial and double press Fn to select and start. You can stop the timer pressing Fn two times (press 2x again to resume) or hold Fn to reset. When the timer ends you can choose the action scrolling with Top dial and pressing Fn two times to select.
08
Connectivity
As you turn on the Knob1, the keyboard will start in bluetooth mode, you can turn off the bluetooth just plugging in the cable.
09

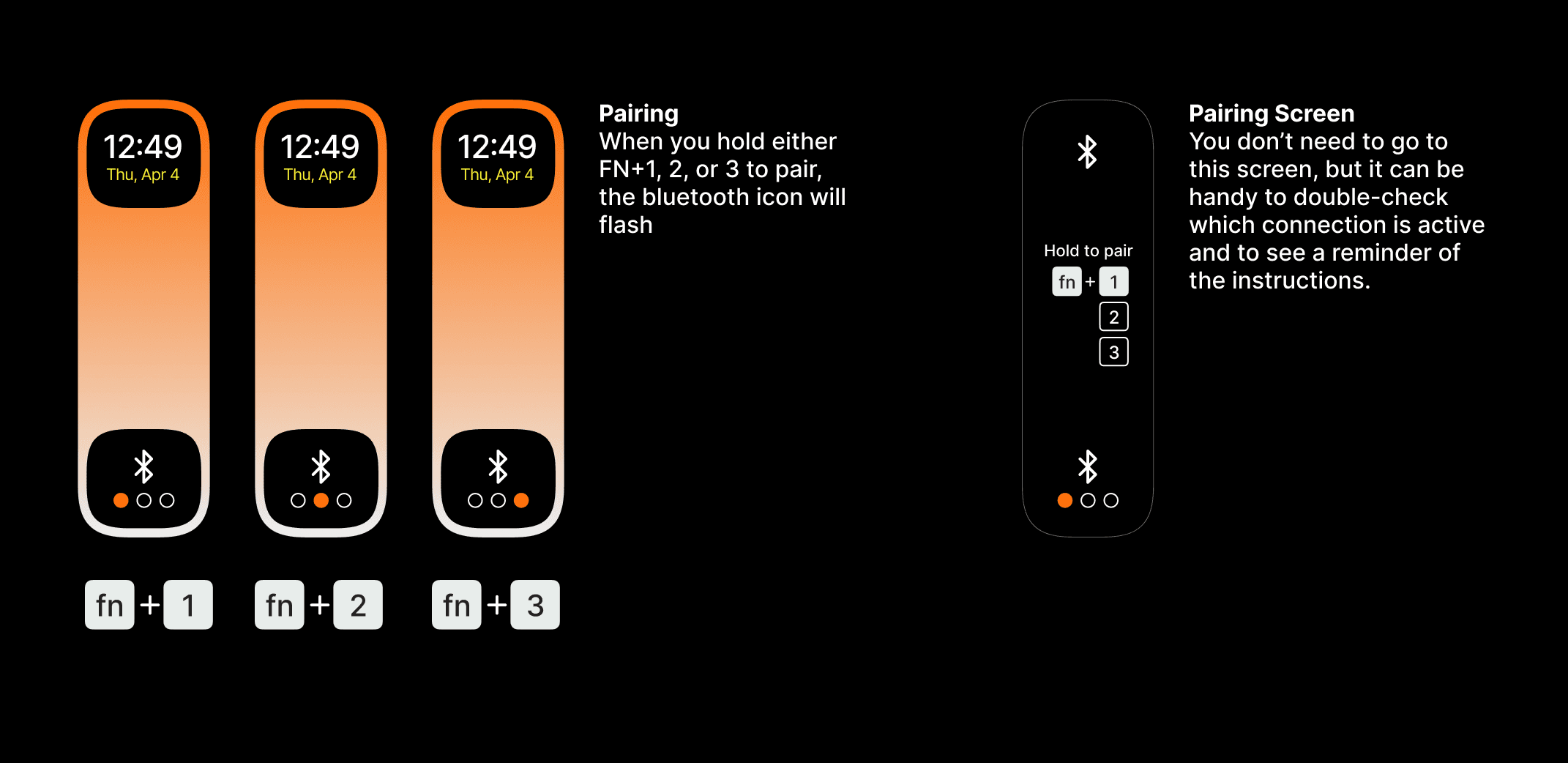

Bluetooth pairing
Without any cable plugged, hold Fn+1 (or 2,3) to pair the Knob1 to your device. If you get any trouble pairing your Knob1, go to the pairing settings screen to check the bluetooth and pairing status.
10
Toggle layers
Use Fn+Q | W | E | R | T | Y (Q=1…Y=6) to switch between the layers you made using Input. Max 6 layers available.
10
Toggle profiles
Use Fn+A | S | D (A=1) to switch between profiles you made using Input. Max 6 profiles available.
11
Mac / Win layer style
In Input toggle the Win logo to change to Apple layer visualisation. This will show you the layerstyle using WIN\ALT or OPT\CMD.
