01
Télécharger Input
Créez des Actions, des Actions Multiples ou remappez simplement votre Knob1 avec Input :
*Utilisez le câble fourni. Si vous utilisez un câble différent et que Knob1 ne se connecte pas, souvenez-vous d'utiliser un câble de données.
02
Turn your Micro on/off
Pro model: click the rear button once to turn it on, and hold it for 2 sec to turn it off.
Base model: just plug & unplug it
03
Paramètres de l'horloge
Pour régler votre horloge, accédez aux paramètres de l'horloge. Sélectionnez la valeur à modifier en faisant défiler avec le cadran supérieur et réglez-la avec le cadran inférieur. Aucune confirmation n'est nécessaire, retournez simplement à l'écran d'accueil pour que votre heure soit correctement réglée.
04

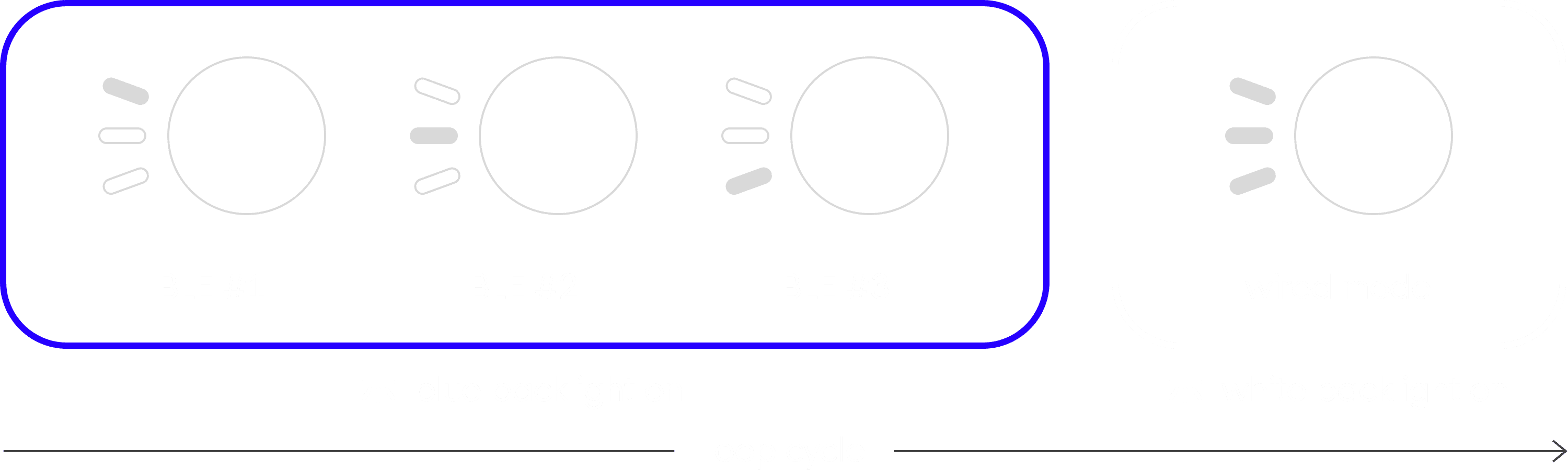

Connectivité
Lorsque vous allumez le Knob1, le clavier démarrera en mode Bluetooth. Vous pouvez désactiver le Bluetooth simplement en branchant le câble.
Pairing
A fast-flashing LED indicates pairing mode.
When the LED turns solid, pairing is complete.
To re-pair, hold the touch button for 3 seconds on your desired channel until it starts blinking again.
Exit communication mode
The Micro automatically exits communication mode after 5 seconds of inactivity.
Note
While in BLE mode, if you plug in the USB cable, it will remain in BLE mode and start charging.
05

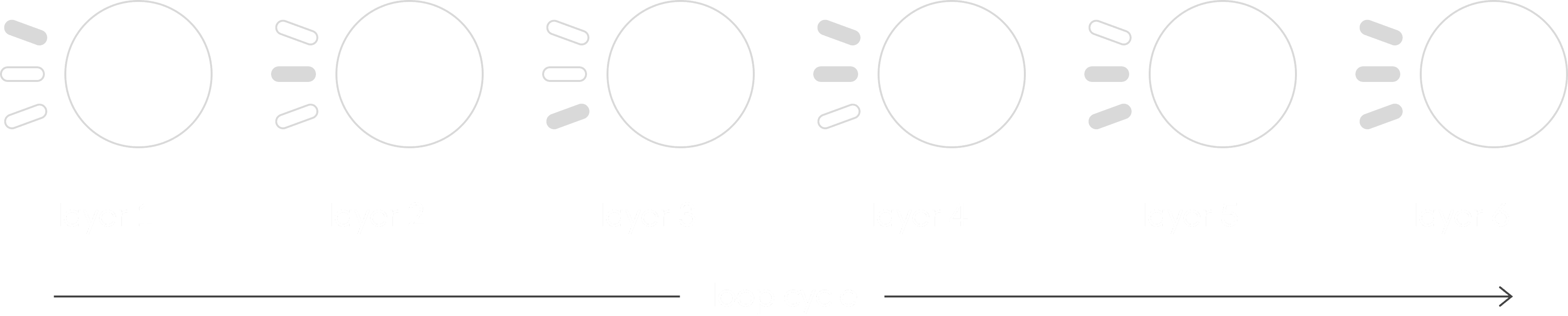

Software-linked layers (AppSense)
Link a software to a specific layer, and your Micro will automatically switch to that layer when the app is in focus.
How to Link a software to a layer?
Click the "link" icon near the layer name.
Then click “Auto detect”.
Now open the app you want to link and keep in focus for 5 sec.
06
Battery level (PRO only)
Tap the on/off button once to show the battery level.
Full charge = 50 days (no rgb)
10%: underglow slowly pulses red (every 10 mins)
5%: underglow slowly pulses red (every 5 mins)
2%: underglow blinks red twice (every 2 mins)
07
Reset your device
If you Micro freezes, or will not turn on/off, a soft reset will fix it:
Soft reset
Unscrew the four screws located at the corners of the PCB.
Gently lift the PCB — be careful, as a flat cable connects the top PCB to an internal lower PCB.
You will see two buttons marked with dots:
One dot (top): Reset
Two dots (bottom): Boot
Press the Reset button (the top one) once.
Your keyboard will reboot and become operational again.
keyboard profile & layer reset (If your layout in Input is corrupted)
With your Micro 2 connected into Input open the Setup tab
Click "Reset settings" & press again to confirm
Now all your layers and profile and actions are deleted
